Figure 1 An AD230/AD237 with the GM side-mount
Figure 2 An AD244 next to an AD237 alternator for size comparison.
Figure 3 A CS130D with the GM side-mount
Chevy, Olds, Pontiac, Buick's with Alternator Mounting Style Shown in below in fig.1 & 3 with the following engines, 3100 (3.1L), 3400 (3.4L), 3500 (3.5) and 3800 (3.8L) 3900 (3.9) with the small case CS130D/AD230/AD237 Alternator. You can now mount the GM Large Case AD244 or the CS144 Heavy Duty Alternators. Replace your small case unit for more power at Idle, greater reliability and more power overall.
If your alternator mounting looks like the mounting style in Fig 1. or Fig 3 above you can now install the Larger AD244 series alternator Shown in comparison to the smaller units in Fig 2. The larger AD alternator will give you better high output performance. You can tell this mounting type because the front bolt is parallel to the center rotor shaft and the rear bold goes the other direction and is perpendicular to the rotor shaft. The Larger AD244 series alternator has the two mounting bolts that both go parallel to the center rotor shaft.
U-Bracket featured on this page. Laser-cut for precision, this bracket allows for drop-in replacement of CS130D, AD230, and AD237 alternators that use the side-ways ear mount (shown in the installation below) with CS144 and AD244 alternators utilizing the 2-foot 2-inch mount. Finally you can install our Extreme Duty Dual Rectifier CS144 or the Large Case Heavy Duty AD244 Alternator in your GM Vehicle with the alternator mounting type shown above.
If you need more charging power for your 1996 and newer GM vehicle with the V6 3100 (3.1L), 3400 (3.4), 3500 (3.5L), 3800 (3.8L) and 3900 (3.9L) powering the the CS130D, AD230, or AD237 type alternator, like the one shown below. You can now install the MONSTER type large case alternator in both single and the Extreme Duty Dual Rectifier version or the AD244 Series alternator . Either are the better high output choice over upgrading your existing Alternator.

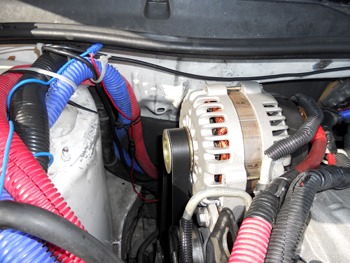

The installation shown below is on the Chevy Malibu with the 3100cc / 3.1 V-6 engine and the Extreme duty CS-144 Dual Rectifier Alternator.
If you have this type alternator on your GM engine you can install up to the 350 amp dual rectifier shown to the right or you can install the AD series which looks more like the original alternator. All you need for this install is the simple "U" bracket shown with the alternator.
Installation below is 2005 Chevy Impala with the 3.5 V6 motor installing the AD244 200 amp Heavy Duty Alternator
Ordering info at bottom of this page
Installation Done
With this monster installed your ready to go!
AD244 Series Alternators with A500 Bracket |
|||
|---|---|---|---|
| add to cart | price | name | description |
| $249.95 | # AD244HD145A500 - TOP QUALITY AD244 Series HD140 Amp Alternator with A500 Bracket |
AD244 Series HD140 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles |
|
| $279.95 | # AD244HD170A500 - AD244 Series HD170 Amp Alternator with A500 Bracket |
AD244 Series HD170 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. With heavy duty bridge rectifier. |
|
| $309.95 | # AD244HD200A500 - AD244 Series, Heavy Duty, 200 Amp Alternator with A500 Bracket |
AD244 Series HD200 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles |
|
| $339.95 | # AD244HD170A500Q1 - AD244 Series HD170 Amp Alternator with A500 Bracket and QF210 |
AD244 Series HD170 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. With heavy duty bridge rectifier. |
|
| $379.95 | # AD244HD170A500Q2 - AD244 Series 170 Amp Alternator with A500 Bracket and QF420 |
AD244 Series HD170 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. With three heavy duty bridge rectifiers. |
|
| $399.95 | # AD244HD200A500Q1 - AD244 Series, Heavy Duty, 200 Amp Alternator with A500 Bracket and QF210 |
AD244 Series HD200 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with two heavy duty bridge rectifiers. |
|
| $439.95 | # AD244HD200A500Q2 - AD244 Series, Heavy Duty, 200 Amp Alternator with A500 Bracket and QF420 |
AD244 Series HD200 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles |
|
| $459.95 | # AD244HD250A500Q1 - AD244 Series HD250 Amp Alternator with A500 Bracket and QF210 |
AD244 Series HD250 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with two heavy duty bridge rectifiers. |
|
| $499.95 | # AD244HD250A500Q2 - AD244 Series HD250 Amp Alternator with A500 Bracket and QF420 |
AD244 Series HD250 Amp Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with three heavy duty bridge rectifiers. |
|
Single Rectifier CS144 Series Alternator Kits |
|||
|---|---|---|---|
| add to cart | price | name | description |
| $239.95 | # CS144HD140A500 - Heavy Duty Alternator, 140 Amp, CS144 Series, A500 Bracket |
CS144 Series HD140 Amp Heavy Duty Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with a single heavy duty bridge rectifiers. |
|
| $269.95 | # CS144HD170A500 - Heavy Duty Alternator, 170 Amp, CS144 Series, A500 Bracket |
CS144 Series HD170 Amp Heavy Duty Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with a single heavy duty bridge rectifiers. |
|
| $319.95 | # CS144HD200A500 - Heavy Duty Alternator, 200 Amp, CS144 Series, A500 Bracket |
CS144 Series HD200 Amp Heavy Duty Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with a single heavy duty bridge rectifiers. |
|
Dual Rectifier CS144 Series Alternator Kits |
|||
|---|---|---|---|
| add to cart | price | name | description |
| $319.95 | # CS144DR140A500 - Dual Rectifier Alternator, 140 Amp, CS144 Series, A500 Bracket |
CS144 Series DR140 Amp Dual Rectifier Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with two heavy duty bridge rectifiers. |
|
| $349.95 | # CS144DR170A500 - Dual Rectifier Alternator, 170 Amp, CS144 Series, A500 Bracket |
CS144 Series DR170 Amp Dual Rectifier Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with two heavy duty bridge rectifiers. |
|
| $409.95 | # CS144DR200A500 - Dual Rectifier Alternator, 200 Amp, CS144 Series, A500 Bracket |
CS144 Series DR200 Amp Dual Rectifier Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with two heavy duty bridge rectifiers. |
|
| $479.95 | # CS144DR250A500 - Dual Rectifier Alternator, 250 Amp, CS144 Series, A500 Bracket |
CS144 Series DR250 Amp Dual Rectifier Alternator with A500 Bracket for Chevy Malibu and Impala Vehicles. Comes with two heavy duty bridge rectifiers. |
|
A500 Bracket and Plugs |
|||
|---|---|---|---|
| add to cart | price | name | description |
| $14.95 | # C120, Repair Connector, Voltage Regulator, CS Series Alternators |
CS Series Alternator Regulator Repair Connector. Used with square-plug, 4-pin voltage regulators. For Delco type CS121, CS130, and CS144 series alternators. |
|
| $29.95 | Part # W1206 Delco Type CS130D to CS144 Series Plug Wiring Harness Adapter, 4 pin round end (CS130D) to 4 pin rectangle (CS-144) Uses up to 4 wires |
CS-130D to CS-144 Wiring Harness Adapter,4pin round end (CS130D) to 4 pin rectangle (CS-144) |
|
| $39.95 | Part # A500 Delco Type CS130D, AD230, AD237 Series Side-Mount to AD244, CS144 Series MODIFIED 2-Foot 2-Inch Mount Conversion Bracket |
A500 CS130D, AD230, AD237 Side-Mount to Delco AD244, CS144 MODIFIED 2-Foot 2-Inch Mount Conversion Bracket |
|
